Custom plastic lined pipe spools and stock fittings, from our own shop in Fairhope, AL.
With over fifty years of experience in supplying, stocking and fabricating plastic lined piping systems, Marspec is uniquely qualified to be your source for anything to convey corrosive, toxic or high purity media in an industrial environment.
LinedPipe.Com is the place for custom pipe spools and fittings lined with PTFE, PVDF or polypropylene. External pipe and fitting materials are available in carbon steel and 304 or 316 stainless steel for the ultimate in corrosion protection.
LinedPipe.Com at Marspec Technical Products is the home of one of the most complete custom pipe spool fabrication facilities in the US. It is ready to fill your needs for custom length pipe spools, built to your drawing.
Plastic-Lined Pipe Systems, Fittings & Custom Spool Fabrication
Built for engineers, maintenance teams and plants that need corrosion resistance, reliable lead times, and a supplier who can handle real-world requests without the runaround. A properly specified lined piping system protects process integrity, plant uptime and safety and compliance when the media is aggressive.

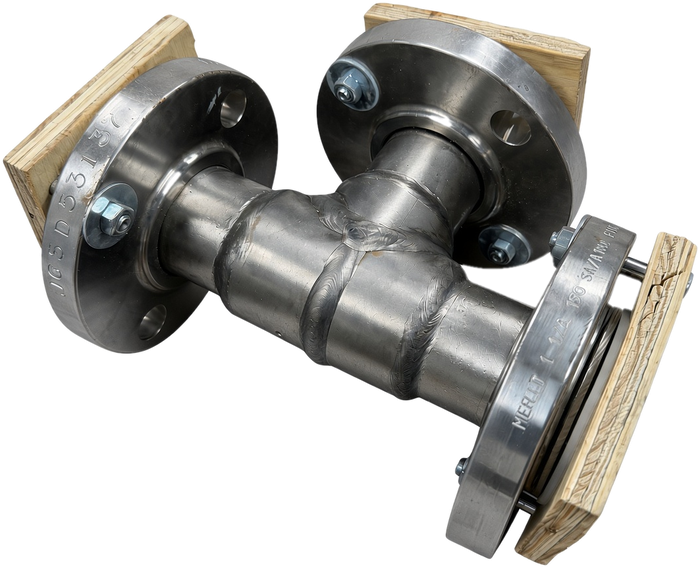

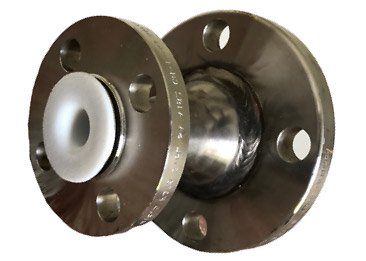

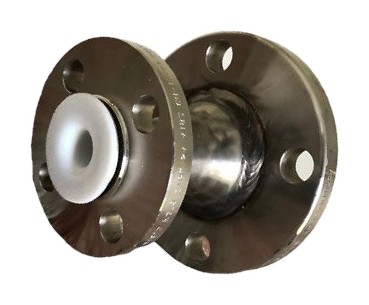

PTFE-Lined Pipe & Fittings, ½" through 12"
Carbon steel and stainless steel, standard and special configurations. Free-sintered liners from proprietary technology and high-quality resins, ram paste extruded or isostatically molded for dimensional accuracy and permeation resistance.

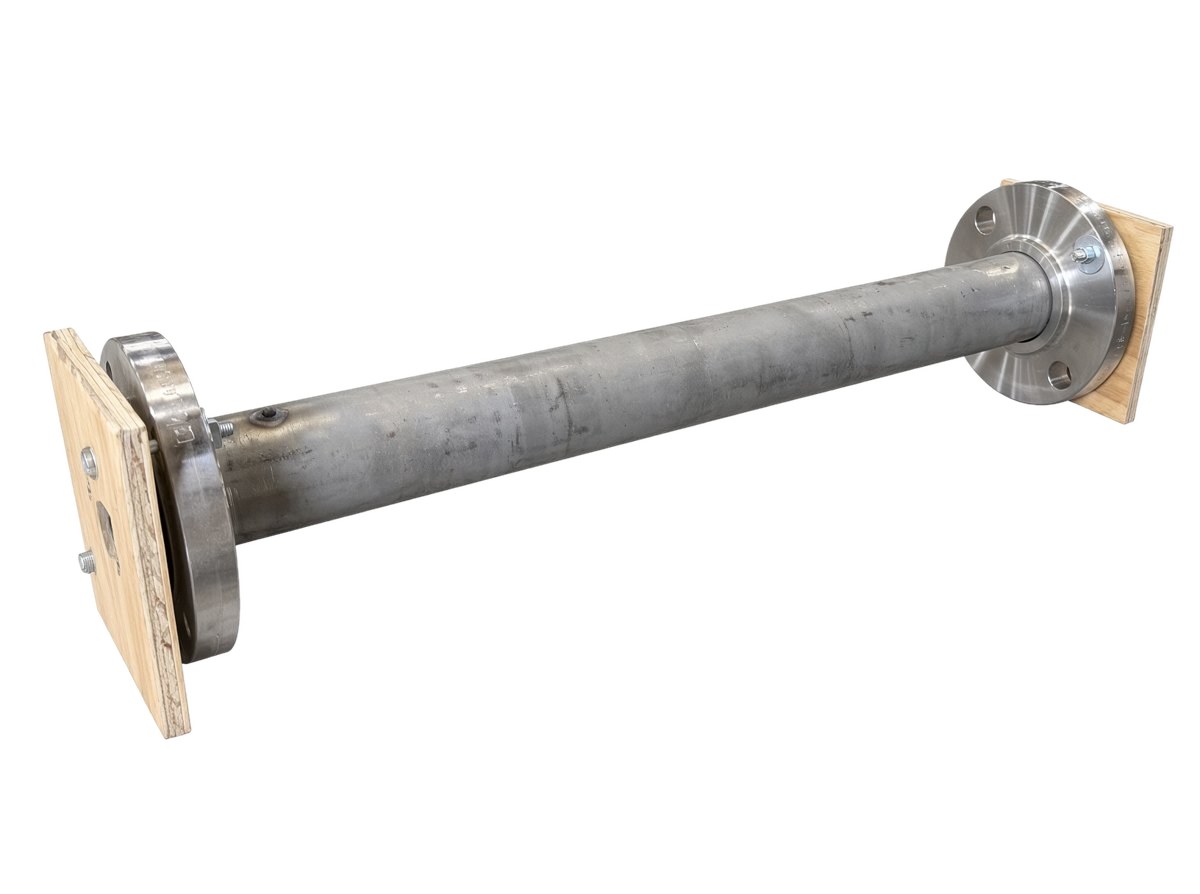

Custom PTFE-Lined Pipe Spools
A587, A106 or A53 carbon steel housings (stainless optional), two rotating flanges standard, fixed flanges by request, lengths specified up to 20 feet. Grounding lugs, extended vent couplings and support lugs available.

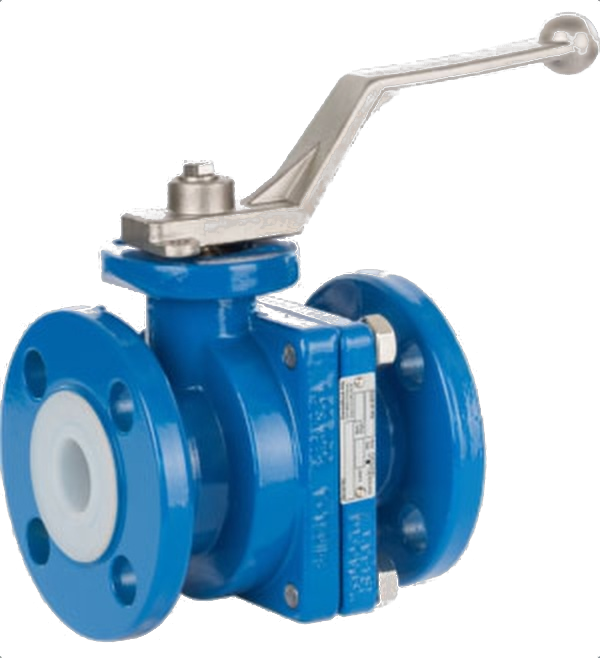

Plastic Lined Valves
Swissfluid PFA and PTFE lined ball, plug, butterfly, diaphragm, check and sampling valves, with sight glasses and actuators. Swissfluid USA supports its national distribution network from its facility in Stafford, Texas; we ship from Fairhope and build automated valve packages in house.
The Rest of the System

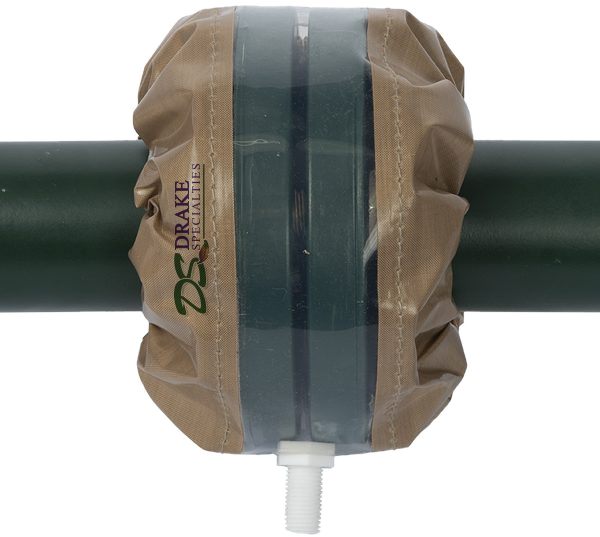

Strainers, expansion joints, spacers and spectacle blinds, glass lined pipe and equipment, lined vessels and column packing, and temperature maintenance. We are honored to simplify your supplier list.
Quality Standards, Traceability & Spark Testing
ASTM F1545
All products comply with the standard for plastic lined ferrous metal pipe, fittings and flanges.
ANSI B16.5
Fittings conform dimensionally, so they bolt up to what is already in your line. Metric flanges also available.
ASME B31.3 & Section IX
The lined fittings we supply are welded to B31.3 by welders certified to Section IX of the ASME Boiler and Pressure Vessel Code. Lined spools are flanged over a flared liner and need little welding.
10,000-Volt Spark Test
Every lined part, minimum 10,000 volts. Any audible or visible spark rejects the liner.
Identification & Traceability
Lined fittings carry identifying markings on their flanges in accordance with ASTM F1545; spools fabricated by Marspec are stamped with the Marspec M on the flange.
Primed & Protected
Carbon steel primed for field top-coating; special coatings on request. Flared faces ship under wooden end covers.
PTFE, PVDF or Polypropylene
All three liners ship in the same carbon or stainless housings with the same ANSI B16.5 flange pattern. The liner decides chemical resistance and temperature range. PTFE is what we recommend and quote for most services; PVDF and polypropylene are available where a specification calls for them. Not sure which? Send us the service conditions and we will recommend one.
| Liner | Operating temperature | Tensile @ yield | Elongation @ yield | Colorant | Typical service |
|---|---|---|---|---|---|
| PTFE | −20 °F (−29 °C) to 450 °F (232 °C) | 3,000 psi min. | 250% min. | None | Broadest chemical resistance: strong acids, caustics, solvents, chlorine, mixed streams. Our standard liner. |

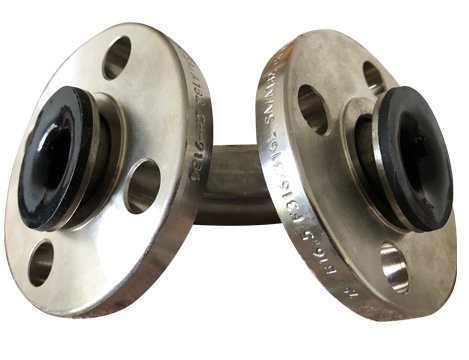

| PVDF | 0 °F (−18 °C) to 275 °F (135 °C) | 4,500 psi min. | 10% min. | Black | Halogens, strong acids, high-purity water, abrasive service. Highest strength of the three. |
| Polypropylene | 0 °F (−18 °C) to 225 °F (107 °C) | 3,000 psi min. | 10% min. | Orange | Caustics, dilute acids, salt solutions, process water. Available where a specification calls for it; we recommend PTFE for most services. |
Ratings depend on size, pressure and the specific chemical. Full liner data is on the Technical Details page.
The Guiding Principles of LinedPipe.Com
- We work for YOU, the user of plastic lined pipe, not some huge multinational conglomerate who would rather not be bothered with special requests or one-off spools.
- We strive to meet YOUR needs on YOUR schedule.
- We listen to understand YOUR unique requirements and work to meet them.
- We are always appreciative of YOUR business.
Industries we serve
- Chemical processing
- Pulp and paper
- Petroleum refining
- Water and wastewater treatment
- Pharmaceutical and high-purity
- Food and beverage
- Mining and metals
- Power generation
FAQ: Plastic-Lined Pipe, Fittings & System Components
What is plastic-lined pipe used for?
Moving corrosive, aggressive or high-purity media while the steel housing carries the pressure and the liner protects process integrity.
How do you supply lined valves?
Swissfluid USA supports its national distribution network from its facility in Stafford, Texas. Valves ship from Fairhope, Alabama, and we quote the lead time with the price. Automated packages add our in-house assembly and shop test; ask when you request the quote.
What liner materials do you offer?
PTFE, PVDF and polypropylene. PTFE lined fittings in carbon and stainless steel are stocked; PVDF and polypropylene lined fittings, and every custom spool, are made to order. Plus Swissfluid lined valves and accessories for the rest of the system.
What sizes of PTFE-lined pipe and fittings are available?
½" through 12" in carbon steel and stainless steel. Reducing flanges run to 14". Larger diameters and solid PTFE pipe are available under Other Products.
Can you fabricate custom-length lined pipe spools?
Yes. Lengths up to 20 feet, rotating flanges standard, fixed flanges by request. Minimum lengths by size are on the spool data table.
Do your lined products meet ASTM/ASME standards?
Yes. ASTM F1545 for lined pipe, fittings and flanges, and ANSI B16.5 flange dimensions. The lined fittings we supply are welded to ASME B31.3 by Section IX certified welders.
Do you spark test PTFE liners?
Every lined part, at a minimum of 10,000 volts.
Do you offer temperature maintenance for lined piping?
Yes: heat transfer compounds, clamp-on steam piping heaters and electric tracing under Piping Accessories, and fully jacketed spools under Jacketed Pipe Spool Data.
Where are you located and how do I request a quote?
Fairhope, Alabama. Call (251) 625-4949, email info@linedpipe.com, or use the quote form for pricing, lead times and technical help.
Serving Customers Nationwide
From Fairhope, Alabama, we ship lined pipe, fittings, accessories and valves to plants in all fifty states, Gulf Coast refineries to Northeast pharmaceutical plants to West Coast semiconductor fabs, and can arrange hot-shot delivery for shutdown work. The phone is answered 24 hours a day for urgent orders.
